Face Recognition Machine
CD-5005BK  Living dynamic face recognition
CD-5005BK  Living dynamic face recognition
CD-5005BK  Living dynamic face recognition
CD-5005BK  Living dynamic face recognition

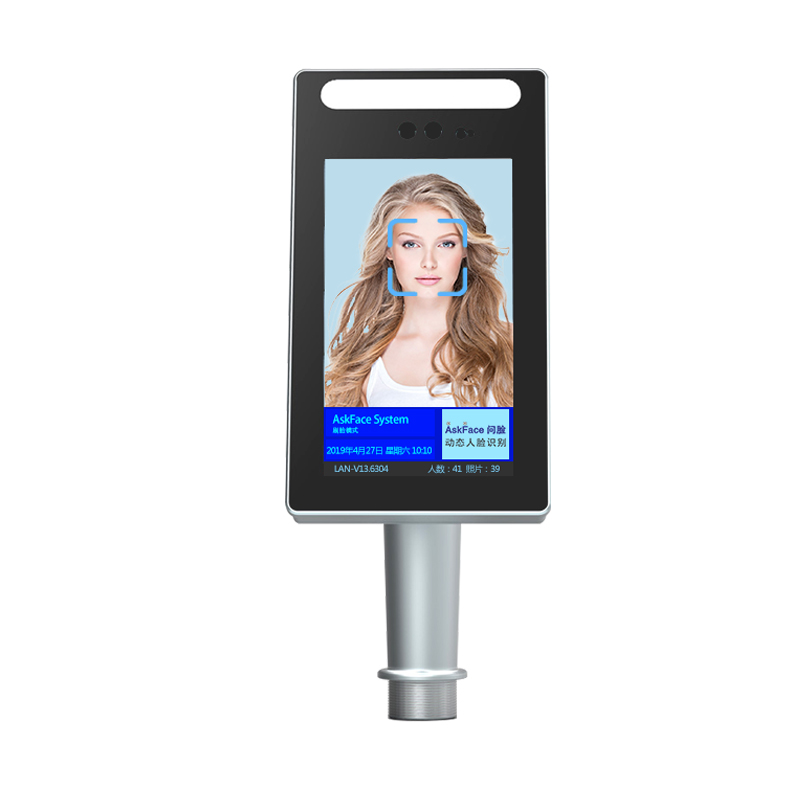

CD-5005BK Living dynamic face recognition
Product Description:1.Adopting the world's leading video stream-based dynamic face detection tracking recognition algorithm, combined with high-performance embedded platform and 2 million pixel binocular wide dynamic camera, accurately realize face detection, tracking, recognition and display on
详细介绍

Product Description:

1.Adopting the world's leading video stream-based dynamic face detection tracking recognition algorithm, combined with high-performance embedded platform and 2 million pixel binocular wide dynamic camera, accurately realize face detection, tracking, recognition and display on 7-inch screen

2.Support 1:N mode face comparison and 1:1 human ID comparison, dynamic binocular + live detection anti-counterfeiting, completely solve all kinds of photo and video deception;

3.Using Android RK3288 mature program, support 10000 face capacity, to meet the needs of most places;

4.Using binocular wide dynamic camera,suitable for indoor and outdoor glare/back-lighting environments, an effectively avoid the effect from light, glasses, etc; in the case of good light environment can identify the face of 5 meters farthest, face comparison time is about 0.1ms.

5.High-grade aluminum alloy metal shell + tempered glass panel, CNC finishing and high-light processing, showing noble temperament, and good heat dissipation.

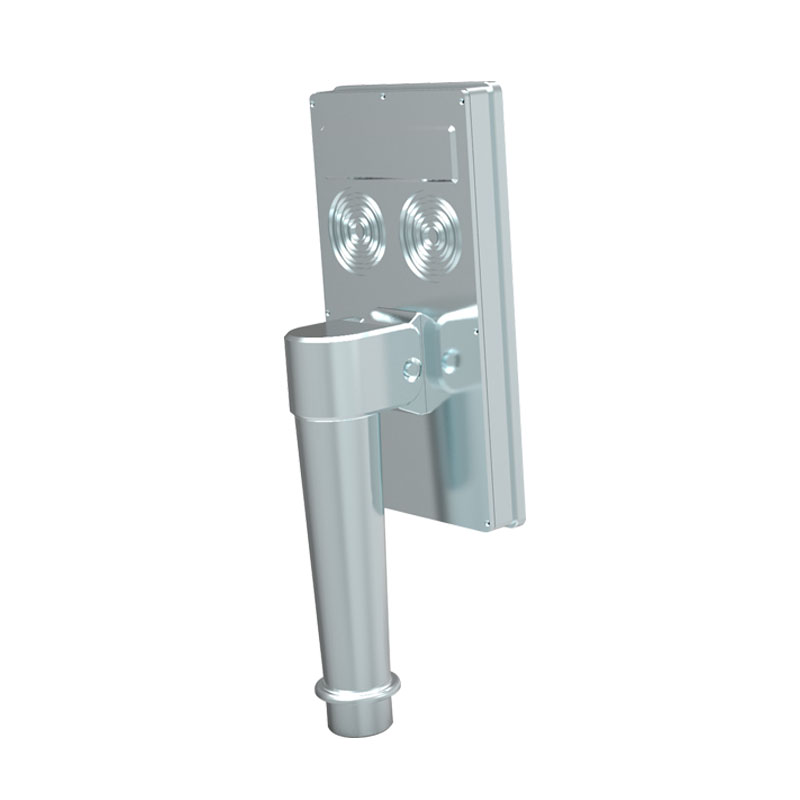

6.Self-contained brake bracket, conforms to the 86 bottom box hole for easy installation on the wall.

6.Rich hardware interface: serial output, Wiegand output, relay switch output, alarm input, USB, RJ45 network port, WiFi communication;

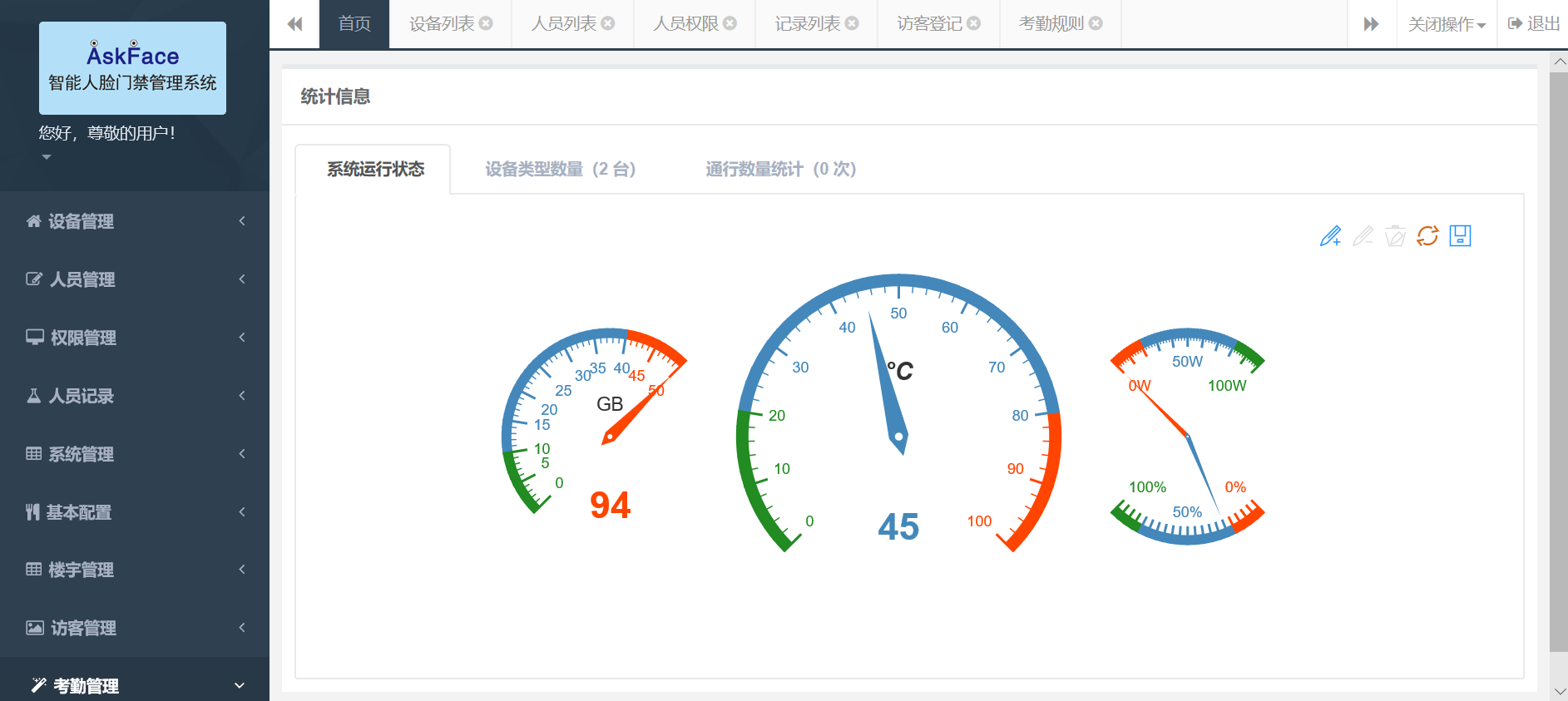

7.Provide self-developed management background software, perfect software functions: equipment management, personnel/photo management, authority management, record viewing, real-time monitoring, attendance management, etc., which can provide interfaces for secondary development.









Detailed introduction

Technical parameters:

Face capacity

Standard 1:N

10000 people

swipe card

Combined with the specified card reader(addition purchase) to realize swipe card pass, and can together with 1:N to use

Storage capacity

1 million face recognition records

Face recognition

Recognition speed

accurate recognize speed,face tracking detection:20ms; get face feature:300ms; compare face: about 0.1ms

Accuracy rate

1:N model0.01% error rate(support 97% pass99.7% pass rate)

Screen

7inch,full view,definition:1024 × 600

Display screen and fill light

Fill light

Night infrared,LED double fill light

Definition

2 million pixels

Face camera

Qty

2 pcs, dynamic binocular wide camera

Aperture

F2.4

Focal length

6mm

White balance

Automatic

Audio

1 channel audio output

Hardware interface

Video

HDMI2.0 Type-A interface 1 pc

Local flash storage

8G

USB extension

USB2.0 type-A interface 1pc

Serial port

1*RS232

Relay output

2.5mm terminal block 3P

Wiegand output

2.5mm terminal block 2P

Wireless communication

2.4G Wi-Fi

Reset interface

built in reset button

Network Interface

One RJ4510M/100M adaptive Ethernet port

Use environment

Indoor/ semi outdoor

Others

Power supply

DC12V-16V

Operating temperature

-10℃~60℃

Operating humidity

10~90

power

10W MAX

Installation method

wall mount, free tilt ± 30 degrees

size

218mm×120mm×24mm,aluminum shell





Software:

1.C/S and B/S for choice, it can be deployed separately or in groups; multiple encryption technologies ensure accurate and secure data

2.Powerful and practical software: equipment management, personnel/photo management, authority management, record viewing, real-time monitoring, attendance management, etc., which can provide interfaces for secondary development.

3.Support stranger detection, recognition level, recognition distance, front-end device UI interface configuration; support for face recognition or scene photo saving when stranger detection;

4.Support a variety of recognition modes: brush face, swipe, card + face, person card comparison; support software login interface and header customization.












Usage:

Entrance and exit channels for face recognition, such as: government, schools, hospitals, banks, clubs, clubs, stations, terminals, enterprises and institutions, residential areas, intelligent buildings, etc.
