Product Description:
1.Adopting the world's leading video stream-based dynamic face detection tracking recognition algorithm, combined with high-performance embedded platform and 2 million pixel camera, accurately realize face detection, tracking, recognition and display on 4-inch screen
2.support 1:N mode face comparison, dynamic binocular + live detection anti-counterfeiting, completely solve all kinds of photo and video deception;
3.using Android RK mature program, support 5000 face capacity, to meet the needs of most places;
4.using binocular camera, can identify 5 people at the same time, in the case of good light environment can identify the face of 5 meters farthest, face comparison time is about 0.1ms, can effectively avoid the effect from light, glasses, etc;
5.small and beautiful, comes with a wall hanging board, in line with the 86 bottom box hole position is easy to install to the wall;
6.rich hardware interface: serial output, Wiegand output, relay switch output, alarm input, USB, RJ45 network port, WiFi communication;
7.Provide self-developed management background software, perfect software functions: equipment management, personnel/photo management, authority management, record viewing, real-time monitoring, attendance management, etc., which can provide interfaces for secondary development.
Detailed introduction
Technical parameters:
Face capacity | Standard 1:N | 5000 people |
swipe card | Built-in IC module to realize swipe card pass | |
Face recognition | Storage capacity | 1 million face recognition records |
Recognition speed | accurate recognize speed,face tracking detection:20ms; get face feature:300ms; compare face: about 0.1ms | |
Accuracy rate | 1:N model：0.01% error rate(support 97% pass，99.7% pass rate) | |
Display screen and fill light | Screen | 4inch，170°IPS LED screen,definition:800 × 480 |
Fill light | Night infrared,LED double fill light | |
Face camera | Definition | 2 million pixels |
Qty | 2 pcs, dynamic binocular | |
Aperture | F2.8 | |
Focal length | 3.51 mm | |
White balance | Automatic | |
Hardware interface | Audio | Built-in |
Video | Built-in | |
Local flash storage | 8G | |
USB extension | Micro USB interface 1pc | |
Serial port | 1*RS232 1*RS485 | |
Relay output | 1-way open door signal output | |
Wiegand output | 26/34 1-way Wiegand 26/34 | |
Wireless communication | 2.4G Wi-Fi | |
Reset interface | built in reset button | |
Network Interface | One RJ45，10M/100M adaptive Ethernet port | |
Others | Use environment | indoor |
Power supply | DC12V/2A | |
Operating temperature | 0℃~＋50℃ | |
Operating humidity | 10％~90％ | |
power | 10W MAX | |
Installation method | wall mount, 86 bottom box hole | |
size | 159mm×81mm×22mm,plastic case |

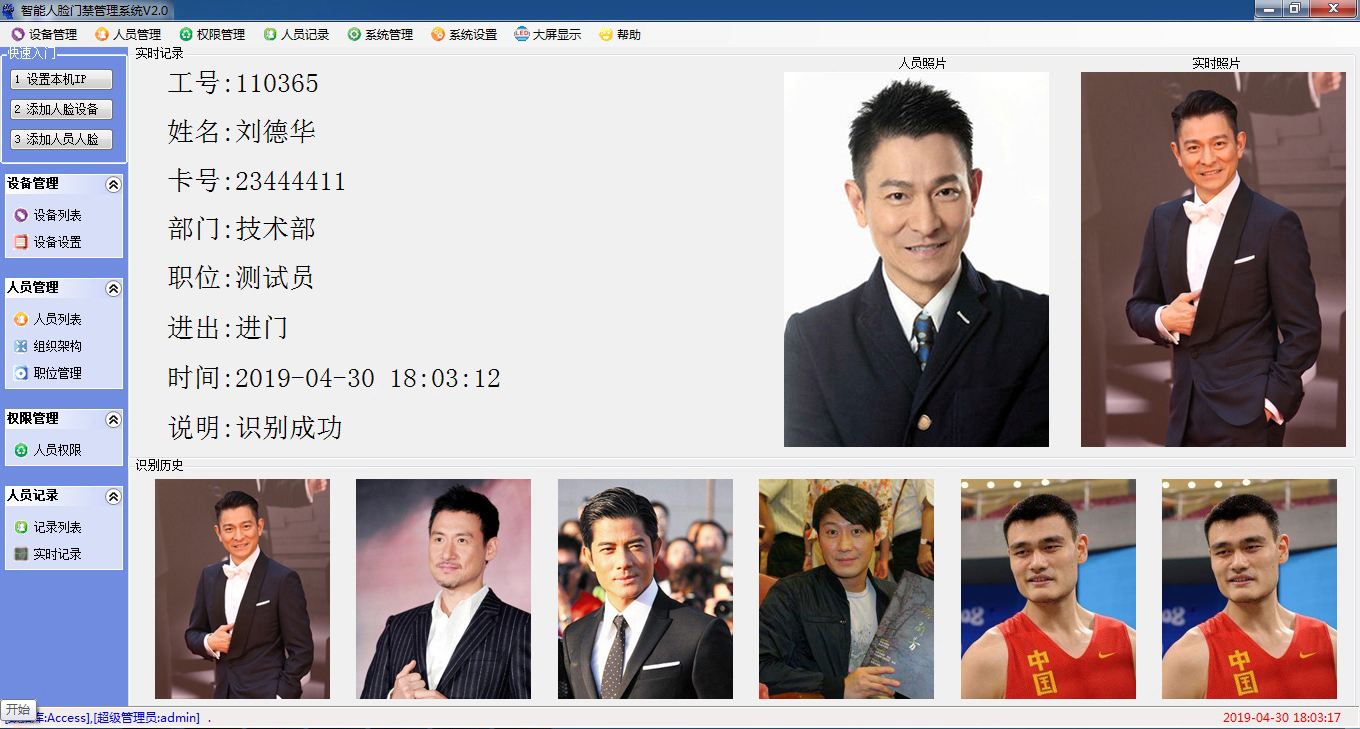

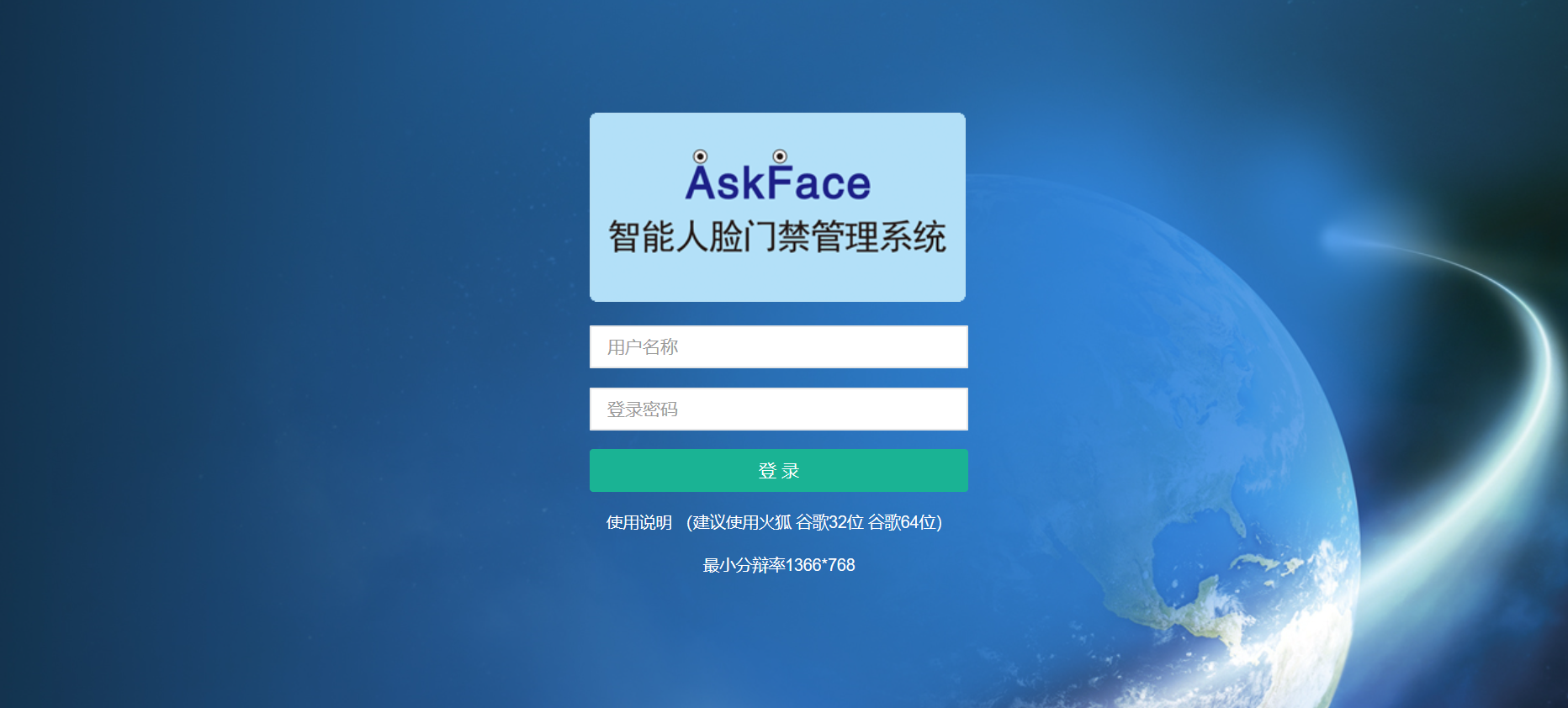

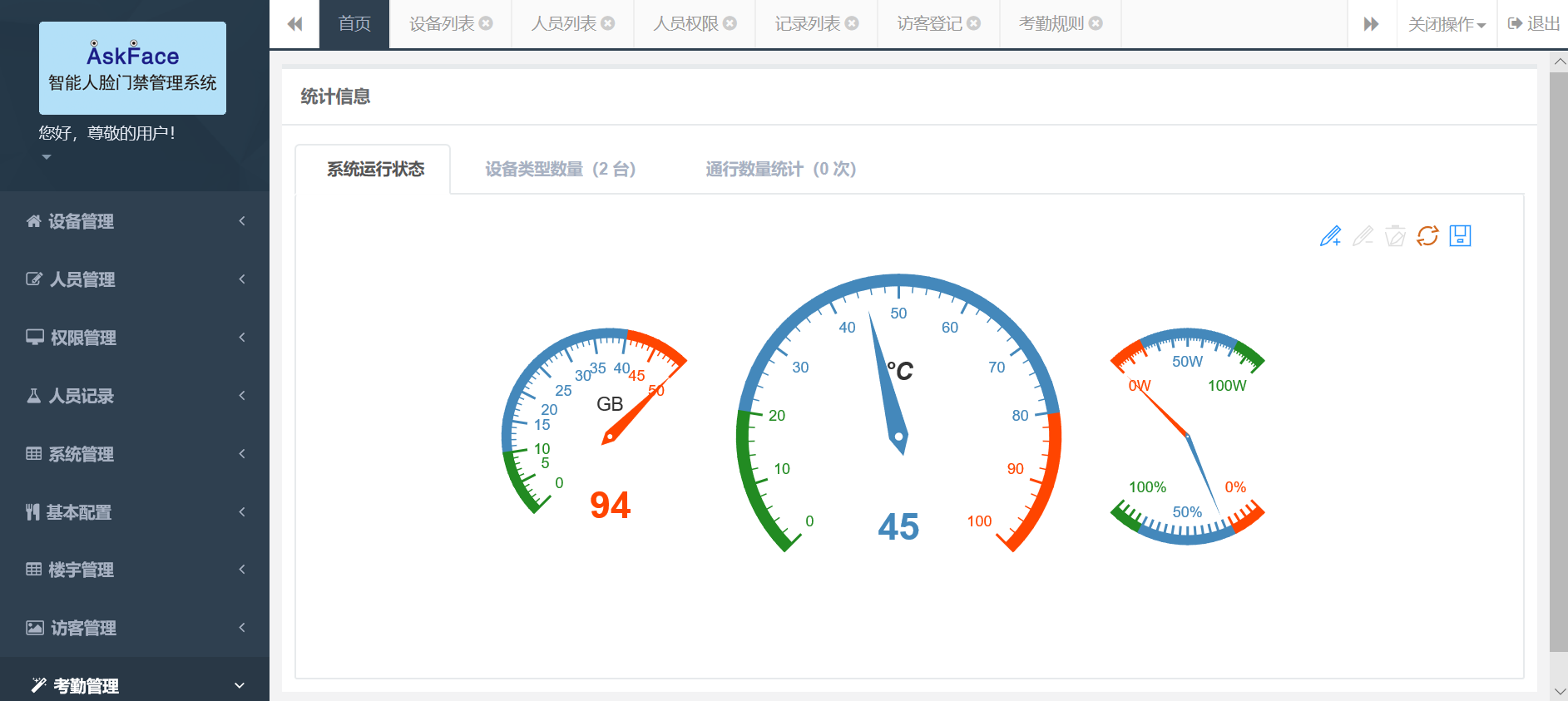

Software:
1.C/S and B/S for choice, it can be deployed separately or in groups; multiple encryption technologies ensure accurate and secure data
2.Powerful and practical software: equipment management, personnel/photo management, authority management, record viewing, real-time monitoring, attendance management, etc., which can provide interfaces for secondary development.
3.Support stranger detection, recognition level, recognition distance, front-end device UI interface configuration; support for face recognition or scene photo saving when stranger detection;
4.Support a variety of recognition modes: brush face, swipe, card + face, person card comparison; support software login interface and header customization.
Usage:
Entrance and exit channels for face recognition, such as: government, schools, hospitals, banks, clubs, clubs, stations, terminals, enterprises and institutions, residential areas, intelligent buildings, etc.
