Product Description:
1.Adopting the world's leading video stream-based dynamic face detection tracking recognition algorithm, combined with high-performance embedded platform and 2 million pixel monocular wide dynamic camera, accurately realize face detection, tracking, recognition and display on 5-inch screen
2.Support 1:N mode face comparison and 1:1 people ID comparison, dynamic monocular face recognition, adopting LINUX system, Huawei HiSilicon CV500 program supports 10,000 face capacity and meets the needs of most places.
3.Wide dynamic camera for indoor and outdoor glare/back lighting.It can effectively avoid the effect from light, glasses, etc; in the case of good light environment can identify the face of 5 meters farthest, face comparison time is about 0.1ms.
4.The high-grade aluminum alloy shell is mass-produced in batches, cost-effective, and the drawing design and maintenance are simpler; the rainproof and fan cooling design is beautiful and generous, and it is noble;
5.The cylindrical structure can be conveniently inserted and installed on the channel gate, integrated with the gate, beautiful and generous; it can also be installed independently with the column;
6.Rich hardware interface: serial output, Wiegand output, relay switch output, alarm input, USB, RJ45 network port, WiFi communication;
7.Provide self-developed management background software, perfect software functions: equipment management, personnel/photo management, authority management, record viewing, real-time monitoring, attendance management, etc., which can provide interfaces for secondary development.
Detailed introduction
Technical parameters:
Face capacity | Standard 1:N | 10000 people |
1:1 human ID comparison | Combined with ID reader(additional purchase) to realize 1:1 human ID certified unity | |
swipe card | Combined with the specified card reader(addition purchase) to realize swipe card pass, and can together with 1:N to use | |
Face recognition | Storage capacity | 1 million face recognition records |
Recognition speed | accurate recognize speed,face tracking detection:20ms; get face feature:300ms; compare face: about 0.1ms | |
Accuracy rate | 1:N model：0.03% error rate(support 97% pass，99.7% pass rate) | |
Display screen and fill light | Screen | Full view, 5inch,definition:800 × 480 |
Fill light | LED fill light | |
Face camera | Definition | 2 million pixels |
Qty | 2 pcs, dynamic monocular | |
Aperture | F2.4 | |
Focal length | 6 mm | |
White balance | Automatic | |
Hardware interface | Audio | 1 channel audio output |
Local flash storage | 8G | |
USB extension | USB2.0 Type-A interface 1 pc | |
Serial port | 1*RS232 | |
Relay output | 2.5mm terminal block 2P | |
Wiegand output | 2.5mm terminal block 3P | |
Reset interface | built in reset button | |
Network Interface | One RJ45，10M/100M adaptive Ethernet port | |
Others | Use environment | Indoor/ outdoor |
Power supply | DC12V-16V | |
Operating temperature | -10℃~＋60℃ | |
Operating humidity | 10％~90％ | |
power | 10W MAX | |
Installation method | Cylindrical mounting, can be rotated 180 degrees horizontally | |
size | Φ127mm*H510mm,bottom hole 50mm |

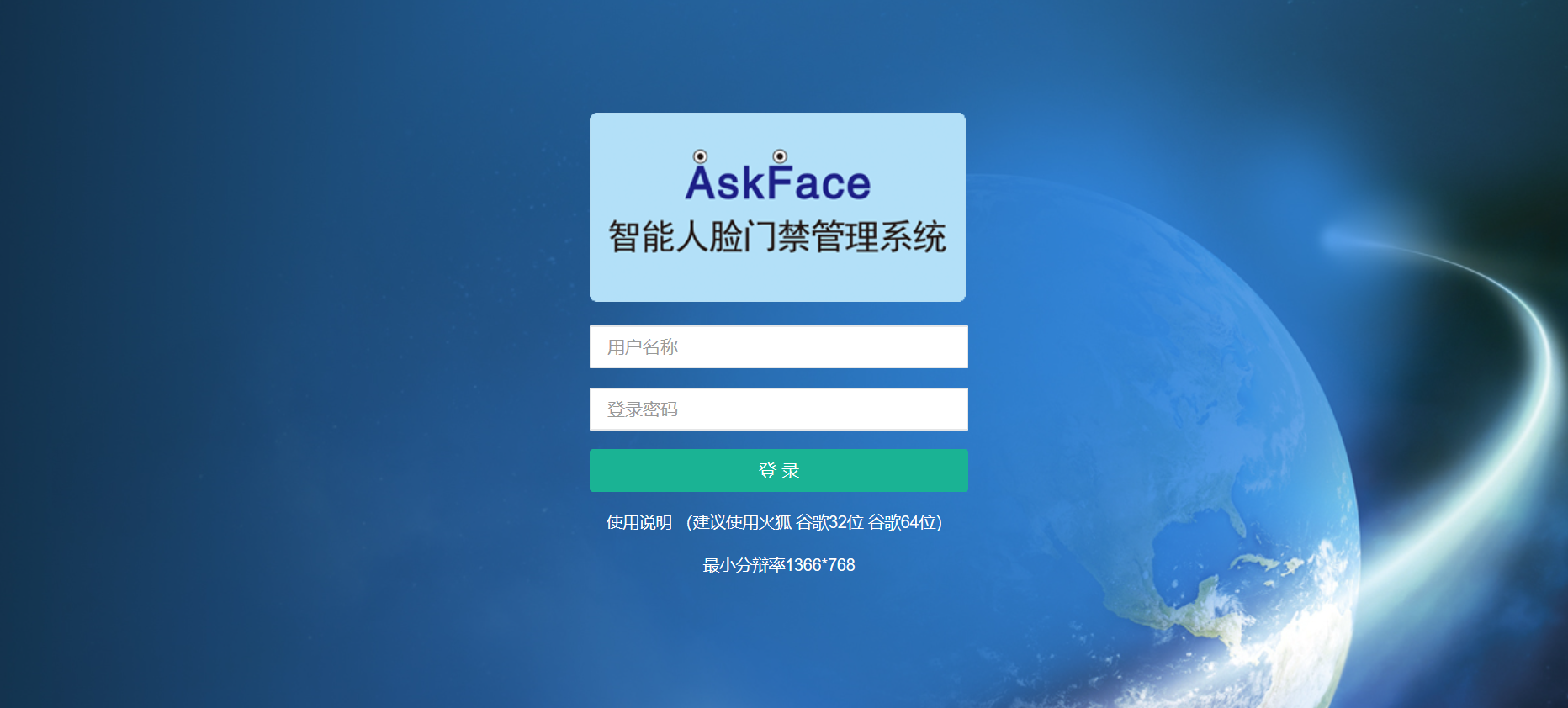

Software:
1.C/S and B/S for choice, it can be deployed separately or in groups; multiple encryption technologies ensure accurate and secure data

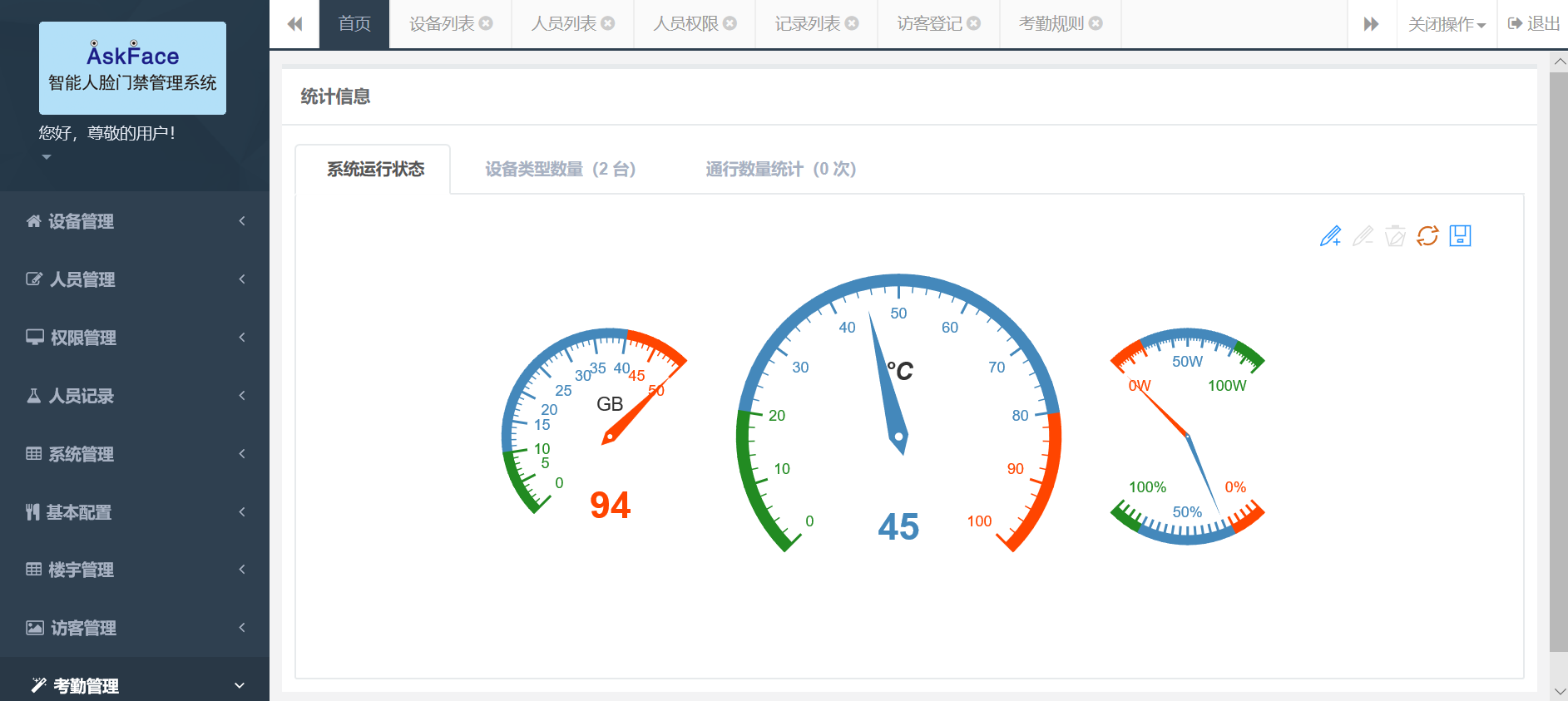

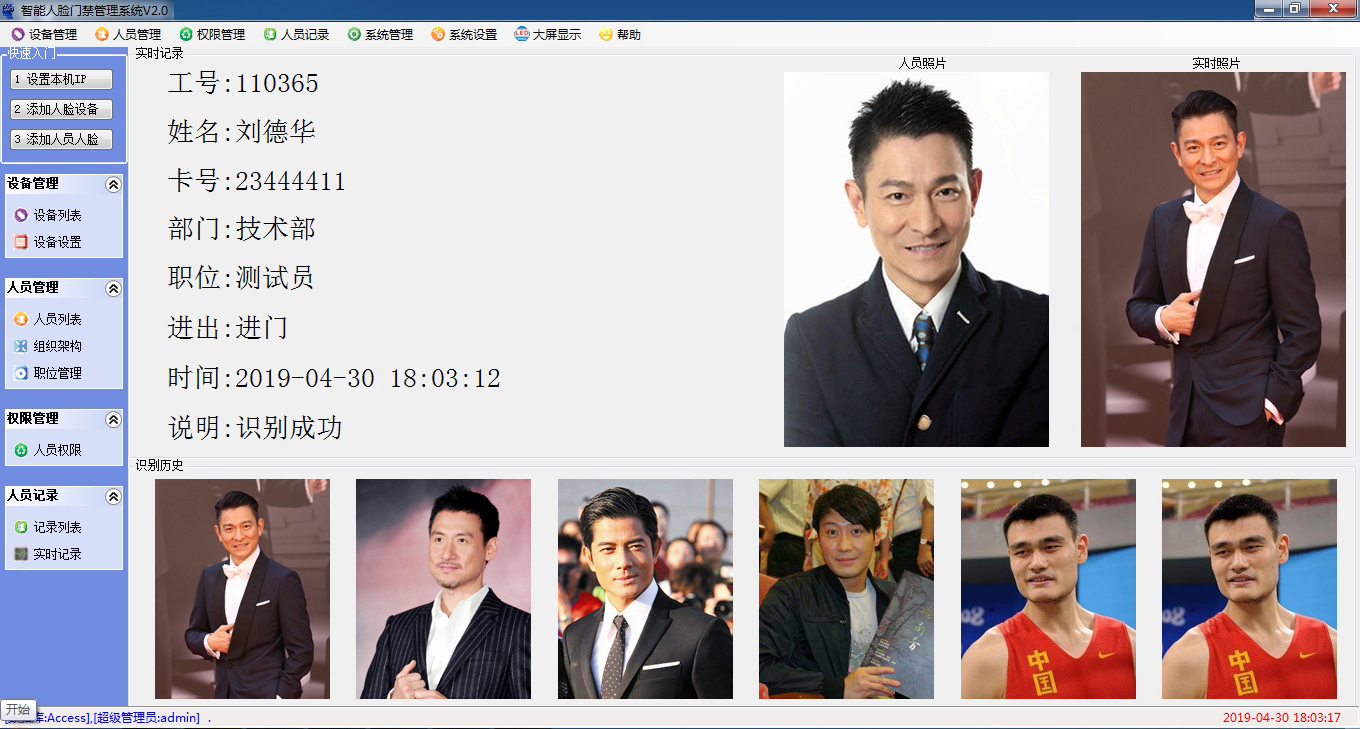

2.Powerful and practical software: equipment management, personnel/photo management, authority management, record viewing, real-time monitoring, attendance management, etc., which can provide interfaces for secondary development.
3.Support stranger detection, recognition level, recognition distance, front-end device UI interface configuration; support for face recognition or scene photo saving when stranger detection;
4.Support a variety of recognition modes: swipe face, swipe, card + face, person card comparison; support software login interface and header customization.
Usage:
Entrance and exit channels for face recognition, such as: government, schools, hospitals, banks, clubs, clubs, stations, terminals, enterprises and institutions, station, intelligent buildings, communities etc..

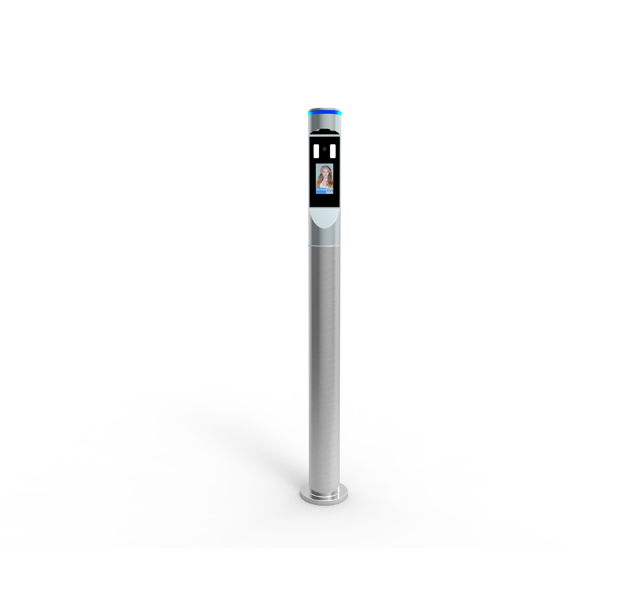

3D max drawing of installation as bellow: (column size: Φ127mm* height 1000mm)
Column model: CD-5005C-LZ127
