Product Description

This wing gate is an intelligent pedestrian passage management equipment developed, developed and produced by our company. It has a beautiful and generous shape, mature technology and stable performance. The whole product adopts the combination of modern fine processing technology, strong and durable, mechanical, electronic, microprocessor control and various reading and writing technology organically integrated, the standard external electrical interface, both intelligent, advanced and convenient and practical, can be freely connected with various intelligent equipment.

1、 Using high quality 304 stainless steel, laser cutting, CNC plane slot bending, fine grinding texture fine and smooth, beautiful appearance, strong and durable.

2、 The main board of the gate is equipped with multiple flow pressure and lightning protection, to make the main board more stable operation and longer service life.

3、 The fourth generation of automatic wing brake movement, with infrared place signal detection, can effectively control the orderly access of pedestrians.

4、 With mechanical + infrared induction + circuit control triple anti-clamp and collision function, prevent clamp phenomenon.

5、 It has automatic power off opening function, automatic reset after power on, meets fire control and other special requirements, and has good safety.

6、 The wing gate operates stable and low noise, with fault self-inspection function, illegal break-in alarm and tracking alarm function, for convenient maintenance and use.

7、 Plane arc fashion design, high-end high-grade black acrylic top cover, top cover chic L ED dazzling three-color direction indication, with acrylic sealing board, all show noble fashion, especially suitable for intelligent building, club club and other high-end occasions

Suitable for one-way or two-way control of people flow of import and export channels, such as: smart buildings, government, schools, banks, clubs, clubs, etc.

Detailed description

I. Main technical parameters

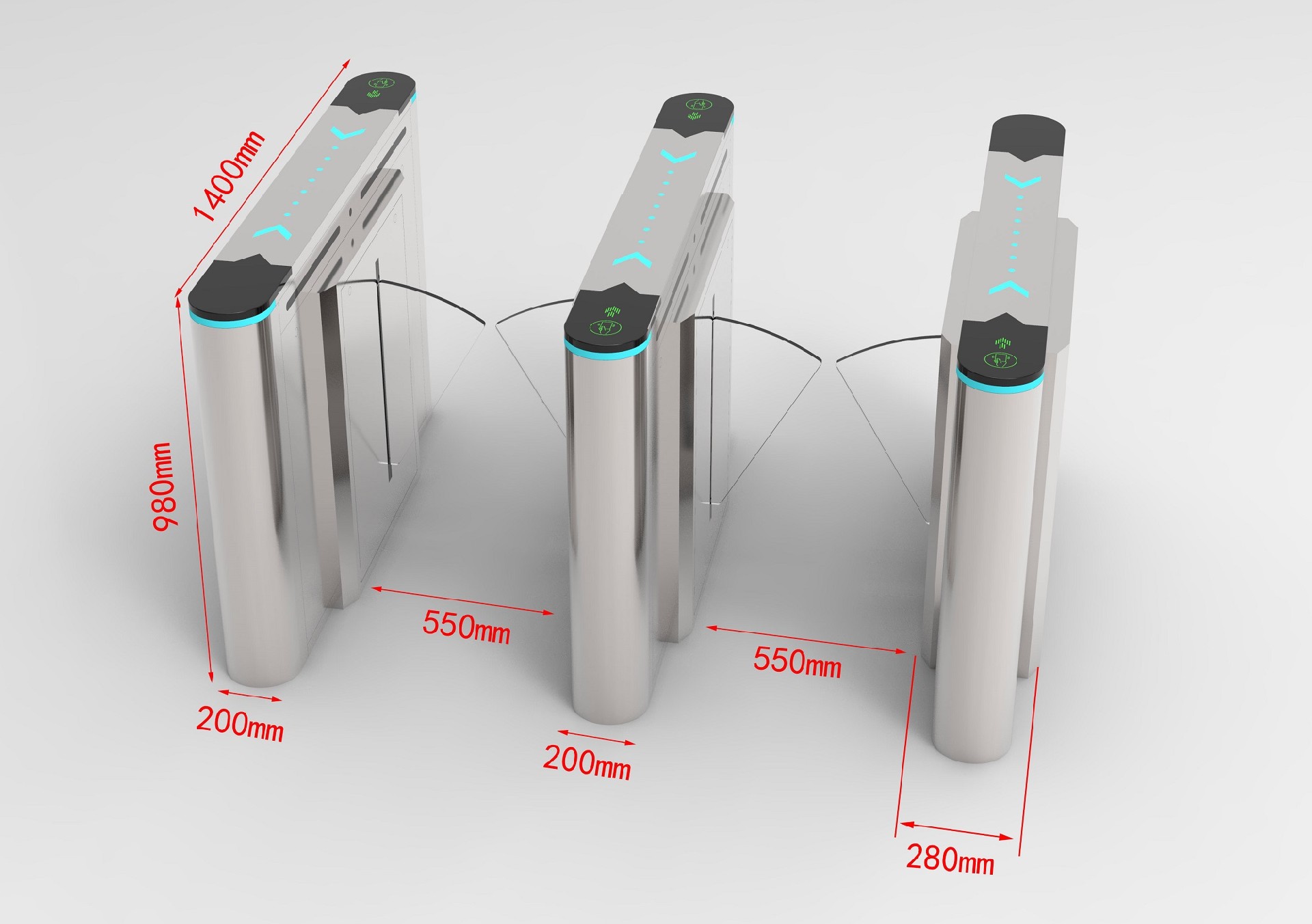

1. Appearance size: 1400 long * 200 (280) wide * 980mm high

2. Material structure: 304 stainless steel, face cover 1.5mm, side plate 1.2mm

3. Channel Width: 550mm

4. Wing door width: 250mm

5. Control mode: fully automatic

6. Control direction: two-way, one-way, one-way + infrared induction exit gate (optional)

7. Alarm anti-clamp: illegal intrusion alarm, tracking alarm; mechanical + infrared induction + circuit control triple anti-clamp anti-collision

8. Traffic speed: 40 people / min

9. Working power supply: AC110V~AC220V

10. Use environment: indoor; temperature: -30℃ to 60℃; humidity: less than 95%RH, non-condensation

11. Communication mode: Customizable, RS232, RS485, TCP/IP

II. Functional characteristics

1. There are multiple working modes that can be two-way (swipe / face / scan), and one side (swipe / face / scan), the other side or button or infrared sensor opening.

2. The main board of the gate is equipped with multiple flow pressure and lightning protection to make the main board more stable and longer service life; button setting function to configure various parameters without connecting the computer.

3. Using the automatic wing brake movement, smooth operation, soft buffer, small noise, with infrared place signal detection, can effectively control the orderly access of pedestrians.

4. Mechanical + infrared induction + circuit control triple anti-clamp and collision function to prevent the phenomenon of clamp and collision.

5. It has automatic power off opening function, automatic reset after power on, meets fire control and other special requirements, and has good safety.

6. The unique mechanical transmission and microprocessor control are organically integrated. After receiving the effective gate signal, the wing door is opened by the motor to automatically reset through the rear infrared sensing; automatically reset when the gate does not pass within the specified time to ensure the safety of the channel.

7. It has fault self-inspection function, illegal break-in alarm and trailing alarm function for convenient maintenance and use.

8. It has a clear traffic direction indicator function, with ultra-high bright direction indicator light, with intuitive LED direction indicator light indicating whether passable or prohibited traffic.

9. Unified and standard external electrical interface can be freely connected with various intelligent devices, facilitate system integration, and can realize remote control and management through the management computer.

Note: If you need to realize intelligent access control, attendance, visitors, real-name system, temperature measurement, ladder control, consumption and other functions, please install our corresponding access control controller, card reader, face machine, fingerprint machine, barcode scanner, ID card reader, temperature measurement and other equipment, please consult or visit the www.110365.com website.

III. Scope of application

Suitable for one-way or two-way control of people flow of import and export channels, such as: smart buildings, government, schools, banks, clubs, clubs, etc.
